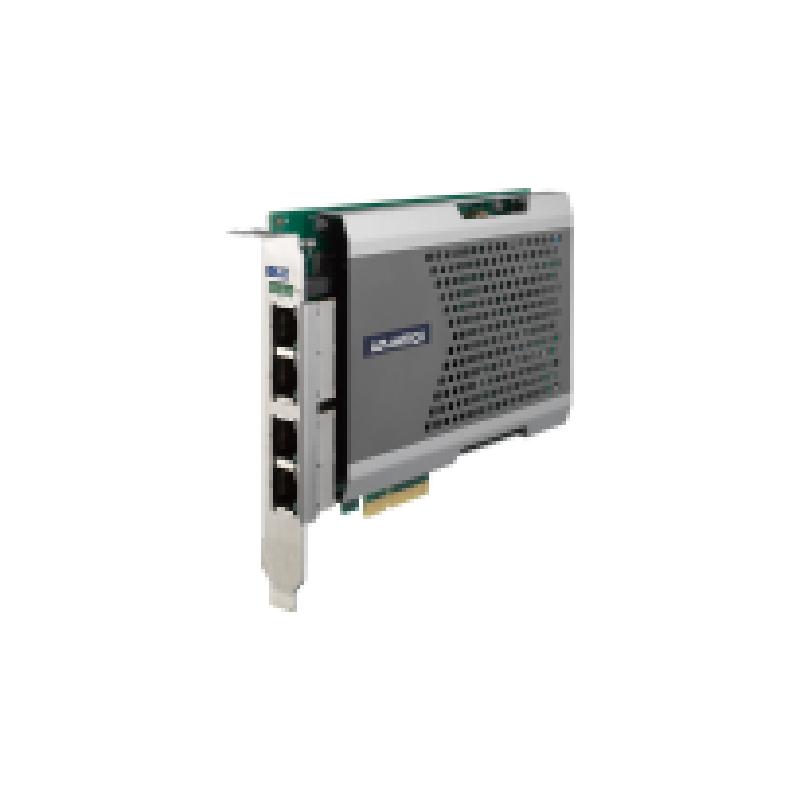

研華PCIE-1674E-BE 4-ports PCI Express PoE+ GigE Vision Frame Grab

研華PCIE-1674E-BE 4-ports PCI Express PoE+ GigE Vision Frame Grab


  • Intel I350 1GbE Ethernet Controller
  • PCI Express Gen2 x4 compliant
  • Compliance with IEEE 802.3at-2009 (PoE+), up to 2 ports delivers up to 25.4 W of power via power jet supply and protect by recoverable eFuse
  • Powered Device (PD) auto detection and classification
  • Supports IEEE 802.3u Auto-Negotiation
  • Supports Jumbo frame (9,500 byte) and link aggregation
  • Supports IEEE 802.3, IEEE 802.3u, IEEE802.3ab,IEEE802.3x, IEEE802.3af, IEEE802.3at
  • PoE on/off control by Hardware switch
  • Protect shell reduce the risk of damage from system installation
  • The PCIE-1674E-BE is ideally designed for scientific research instrumentations, Medical Research Instrumentations, and Machine Vision Systems, which can also benefit from a scalable Gigabit backbone construction with Power-over-Ethernet support.
