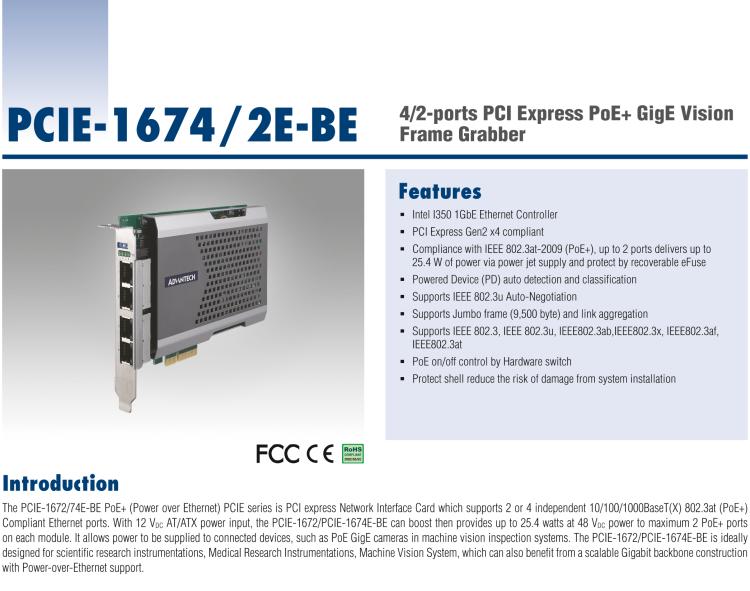

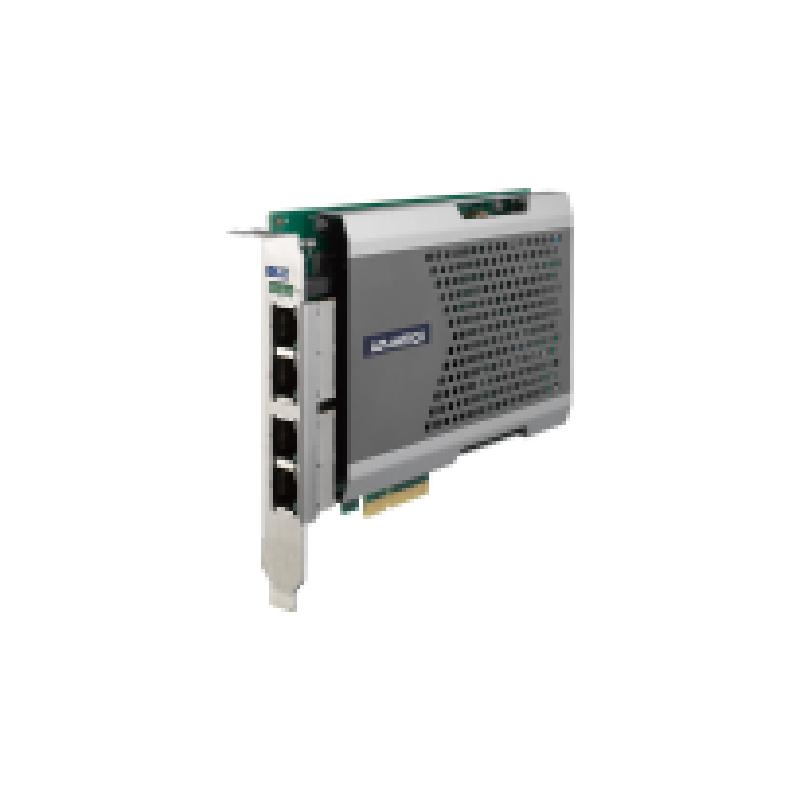

研華PCIE-1672E-BE 2-ports PCI Express PoE+ GigE Vision Frame Grab
- Intel I350 1GbE Ethernet Controller
- PCI Express Gen2 x4 compliant
- Compliance with IEEE 802.3at-2009 (PoE+), up to 2 ports delivers up to 25.4 W of power via power jet supply and protect by recoverable eFuse
- Powered Device (PD) auto detection and classification
- Supports IEEE 802.3u Auto-Negotiation
- Supports Jumbo frame (9,500 byte) and link aggregation
- Supports IEEE 802.3, IEEE 802.3u, IEEE802.3ab,IEEE802.3x, IEEE802.3af, IEEE802.3at
- PoE on/off control by Hardware switch
- Protect shell reduce the risk of damage from system installation
- The PCIE-1672E-BE is ideally designed for scientific research instrumentations, Medical Research Instrumentations, and Machine Vision Systems, which can also benefit from a scalable Gigabit backbone construction with Power-over-Ethernet support.
