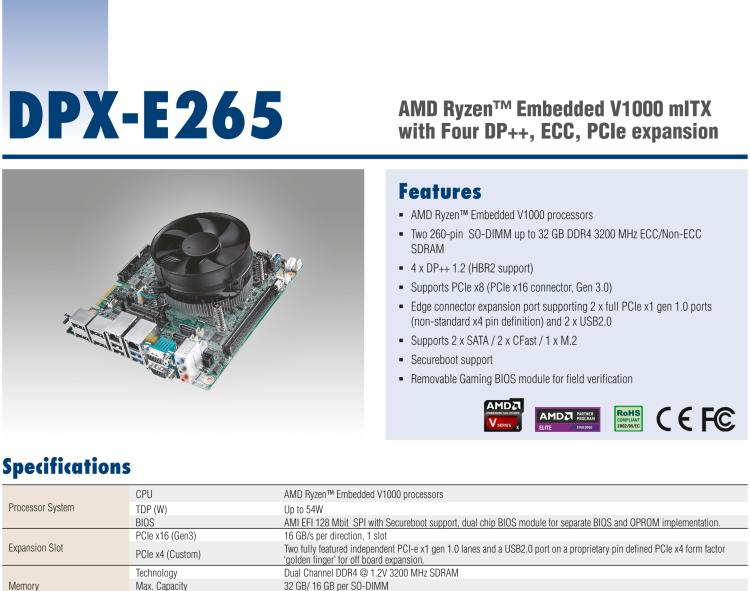

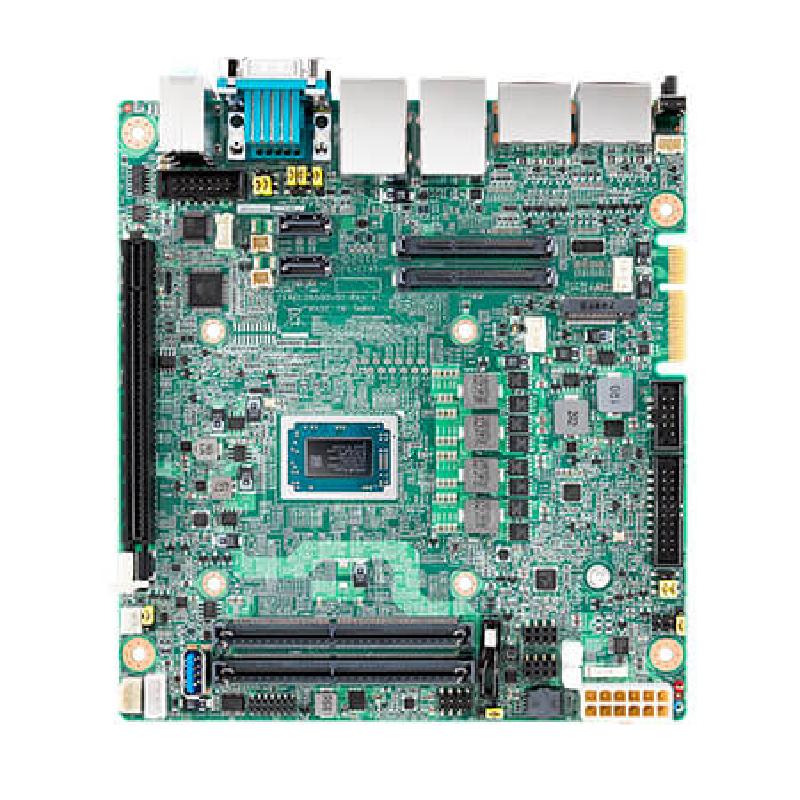

研華DPX-E265 AMD Ryzen? Embedded V1000 mITX with Four DP++, ECC, PCIe expansion

研華DPX-E265 AMD Ryzen? Embedded V1000 mITX with Four DP++, ECC, PCIe expansion


  • AMD Ryzen? Embedded V1000 processors
  • Two 260-pin SO-DIMM up to 32 GB DDR4 3200 MHz ECC/Non-ECC SDRAM

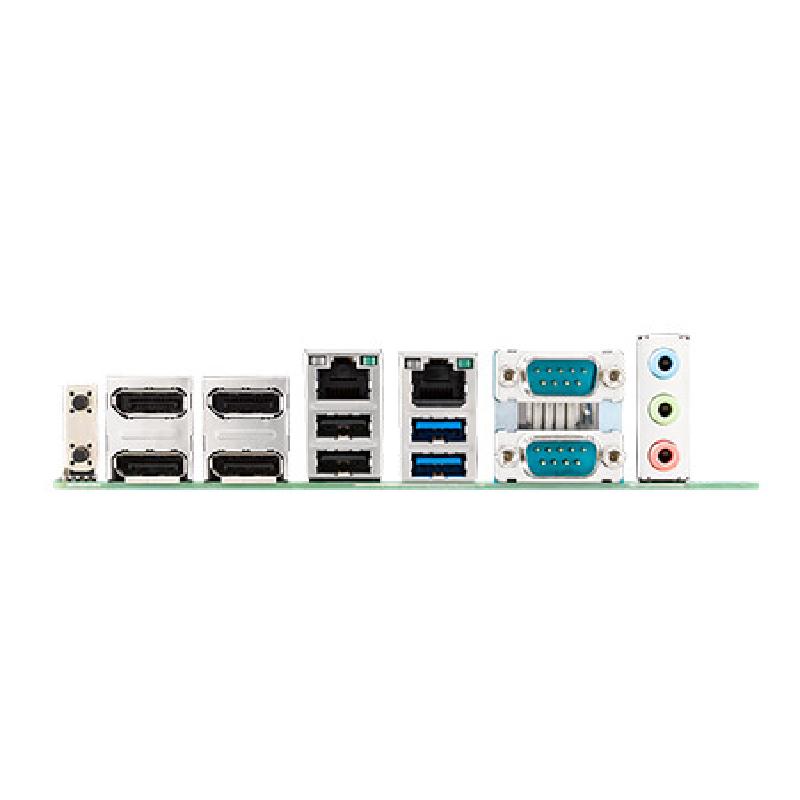

  • 4 x DP++ 1.2 (HBR2 support)
  • Supports PCIe x8 (PCIe x16 connector, Gen 3.0)
  • Edge connector expansion port supporting 2 x full PCIe x1 gen 1.0 ports(non-standard x4 pin definition) and 2 x USB2.0
  • Supports 2 x SATA / 2 x CFast / 1 x M.2
  • Secureboot support
  • Removable Gaming BIOS module for field verification
  • The DPX-E265 is a high performance, cost effective board optimized for gaming and lottery applications.  Features include full size connectors for easy harnessing, lots of USB and COM port connectors, multiple storage options, graphics expansion slot and four DisplayPort connectors for trouble-free monitor connections. The board also has a write-protected BIOS in a removable module.  This allows the board to meet regulatory requirements in certain jurisdictions where the BIOS must be field verifiable and locked against modifications.
