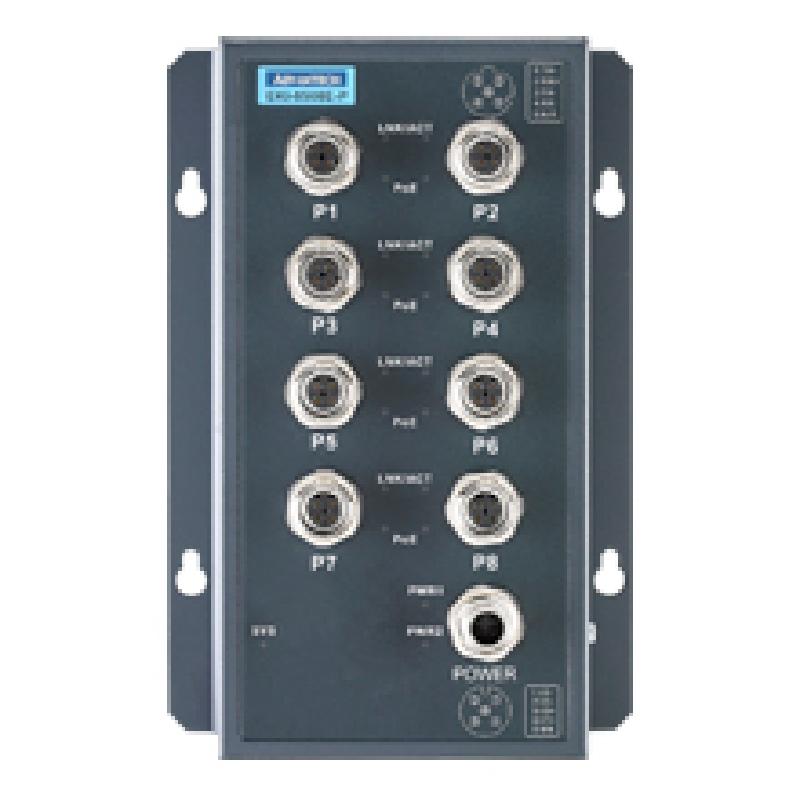

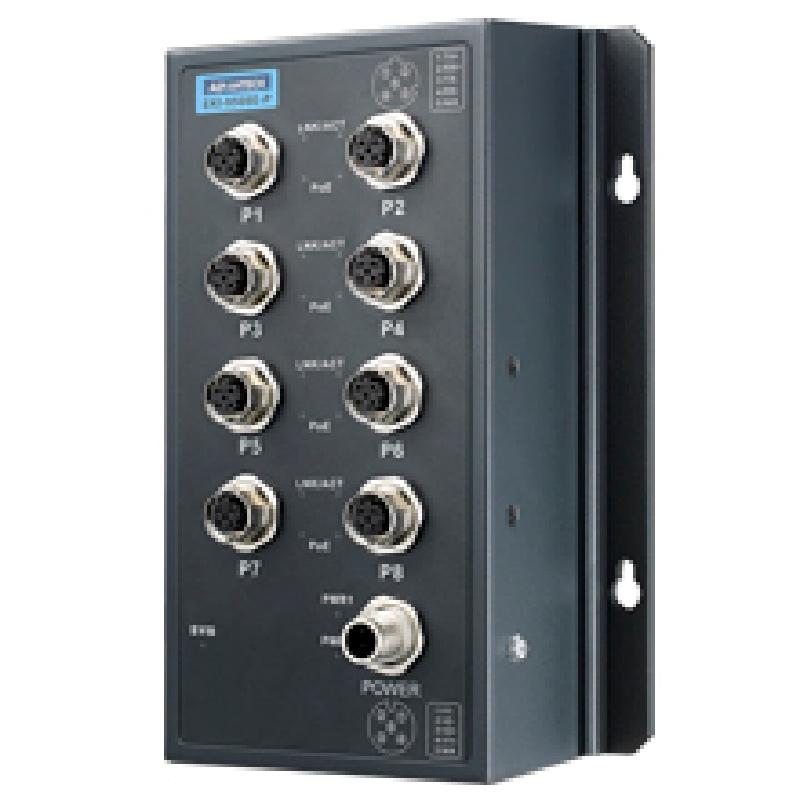

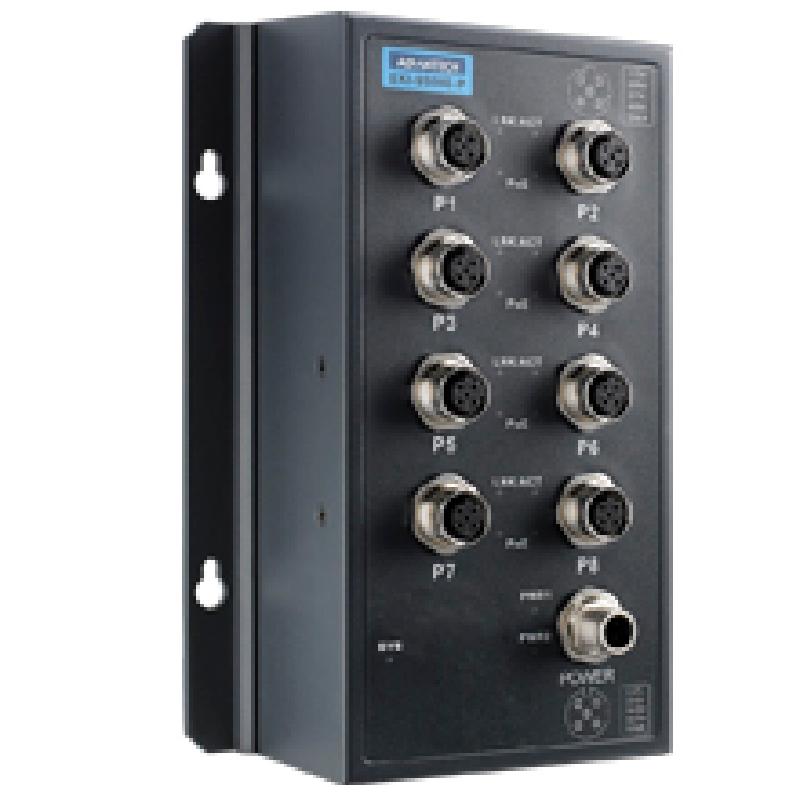

研華EKI-9508E-PL EN50155 Unmanaged Ethernet Switch with 8FE, 24-48 VDC

研華EKI-9508E-PL EN50155 Unmanaged Ethernet Switch with 8FE, 24-48 VDC


  • 8 x M12 D-coded 10/100Mbps PoE ports
  • Complies with EN50155 & EN50121-3-2
  • Operating temperature range -40 ~ 70°C
  • Operating Voltage: 16.8~60 VDC
  • 8-port PoE support IEEE802.3 at/af
  • M12 connector with rugged housing
  • The EKI-9500 series switch is designed for railway application with rugged and high EMC performance, being suitable for networking solution for rolling stock and wayside applications. The EKI-9500 series provides M12 connectors for Ethernet/ console/ relay/ power-input connections to ensure tight & robust connectivity, and thus to guarantee reliable operation against environmental disturbances such as vibration and shock on train. The EKI-9508E-PH & EKI-9508E-PL are PoE Ethernet switches that provide 8 x Fast Ethernet M12 D-code port interface with IEEE802.3af/at PoE(Power Over Ethernet) function. The PoE ports can provide up to 90Watts power budget for P.D. devices (such as camera, IP-phone and wireless access point). The EKI-9508E-PH/PL features “slim” designs which can be easy deployed with its slender size and make the network deployment easier in crowded carriage/ cabinet.
