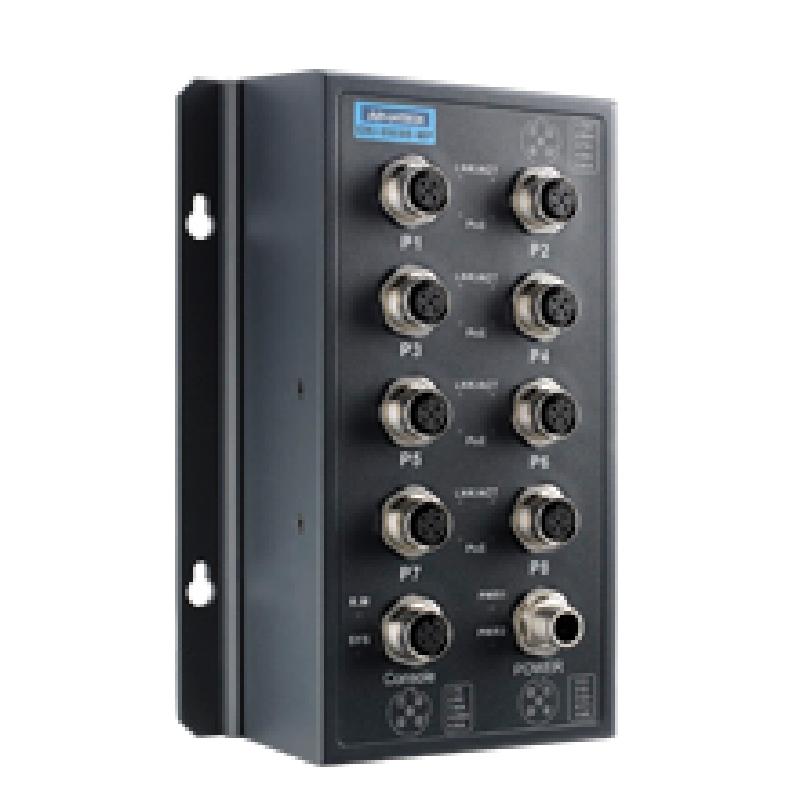

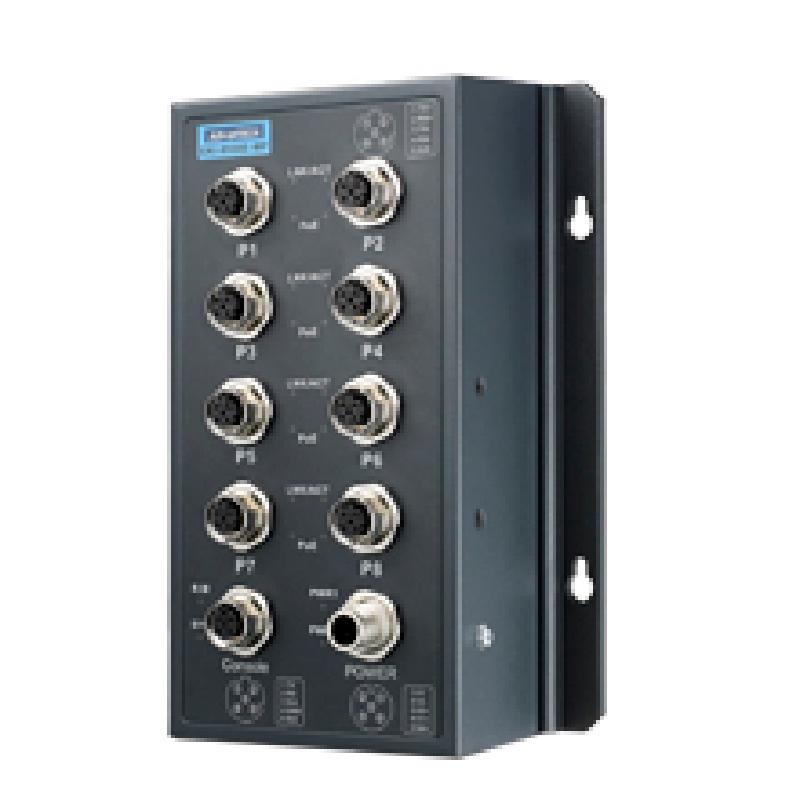

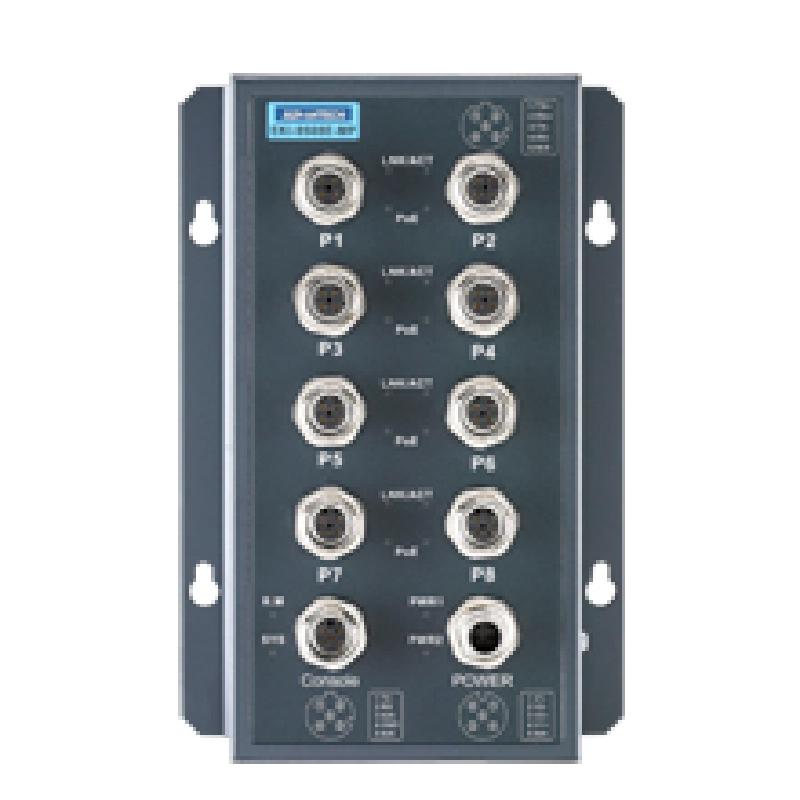

研華EKI-9508E-MPL EN 50155 Managed PoE Ethernet Switch with 8FE, 24-48 VDC

研華EKI-9508E-MPL EN 50155 Managed PoE Ethernet Switch with 8FE, 24-48 VDC


  • 8 x port M12 D-coded 10/100Mbps PoE ports
  • Complies with EN50155 & EN50121-3-2
  • Operating Temperature: -40 ~ 70°C
  • Operating Voltage: 16.8~60 VDC
  • X-Ring Pro supports rapid and predictable convergence
  • 8-port PoE support IEEE802.3 at/af
  • Provides M12 connector with rugged housing
  • EKI-9508E M12 Managed Ethernet Switch is designed for railway applications, including rolling stock and wayside installations. EKI-9508E switch uses M12 connectors to ensure tight, robust connections, and to guarantee reliable operation against environmental disturbances, such as vibration and shock. It provides 8 Fast Ethernet M12 D-code ports with 8 IEEE 802.3at/af PoE ports. The PoE /PoE switch is classified as power source equipment (PSE) and provides up to 100 watts PoE power budget, and can be used for IEEE 802.3at/af compliant powered devices (PDs), such as IP cameras, wireless access points, and IP phones.
