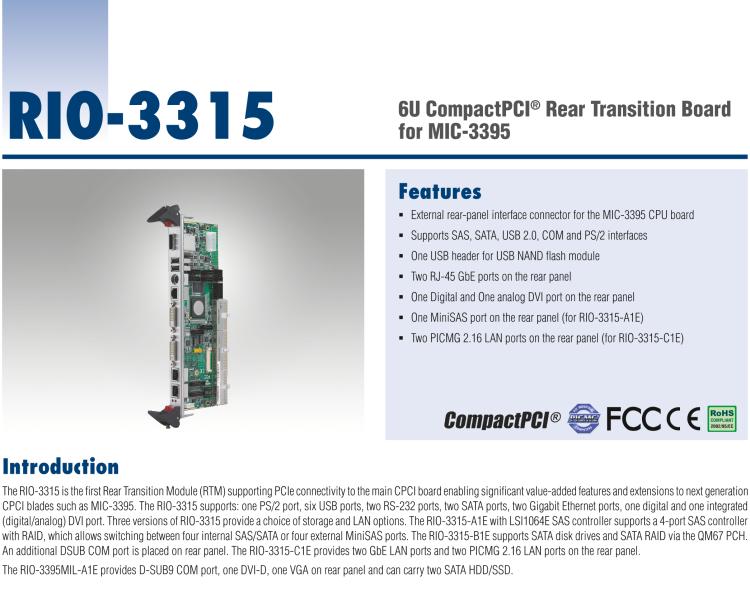

研華RIO-3315 6U CompactPCI? Rear Transition Board for MIC-3395

研華RIO-3315 6U CompactPCI? Rear Transition Board for MIC-3395


  • External rear-panel interface connector for the MIC-3395 CPU board
  • Supports SAS, SATA, USB 2.0, COM and PS/2 interfaces
  • One USB header for USB NAND flash module

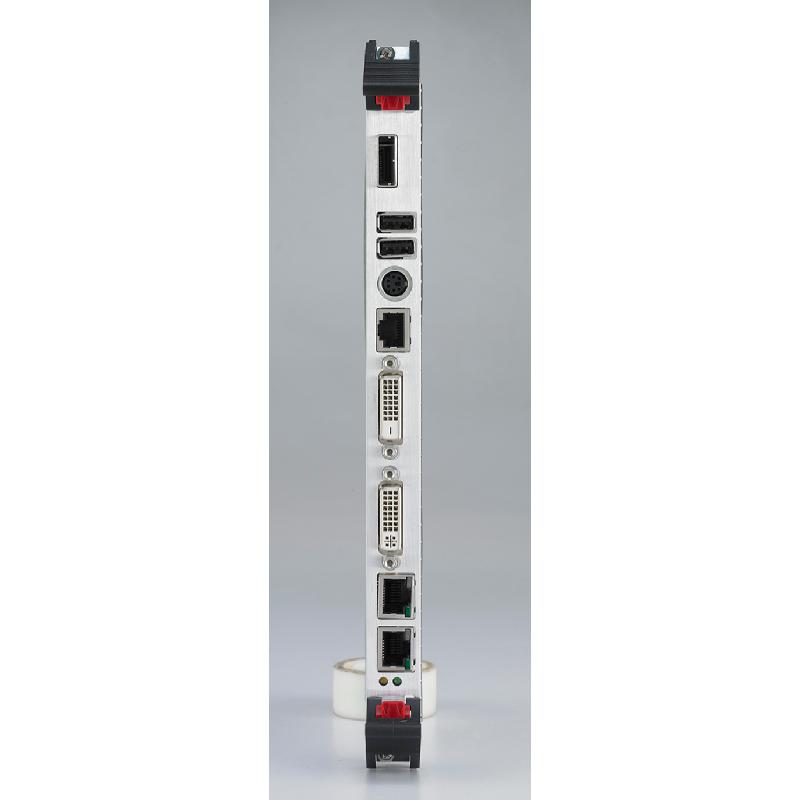

  • Two RJ-45 GbE ports on the rear panel
  • One Digital and One analog DVI port on the rear panel
  • One MiniSAS port on the rear panel (for RIO-3315-A1E)
  • Two PICMG 2.16 LAN ports on the rear panel (for RIO-3315-C1E)
  • The RIO-3315 is the first Rear Transition Module (RTM) supporting PCIe connectivity to the main CPCI board enabling significant value-added features and extensions to next generation CPCI blades such as MIC-3395. The RIO-3315 supports: one PS/2 port, six USB ports, two RS-232 ports, two SATA ports, two Gigabit Ethernet ports, one digital and one integrated (digital/analog) DVI port. Three versions of RIO-3315 provide a choice of storage and LAN options. The RIO-3315-A1E with LSI1064E SAS controller supports a 4-port SAS controller with RAID, which allows switching between four internal SAS/SATA or four external MiniSAS ports. The RIO-3315-B1E supports SATA disk drives and SATA RAID via the QM67 PCH.

    An additional DSUB COM port is placed on rear panel. The RIO-3315-C1E provides two GbE LAN ports and two PICMG 2.16 LAN ports on the rear panel.

    The RIO-3395MIL-A1E provides D-SUB9 COM port, one DVI-D, one VGA on rear panel and can carry two SATA HDD/SSD.
