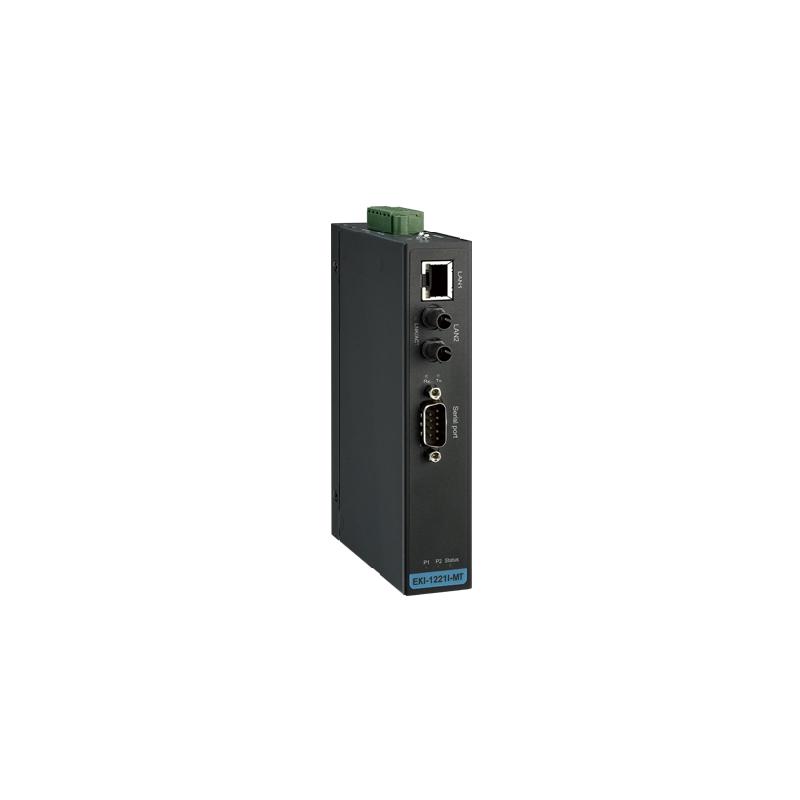

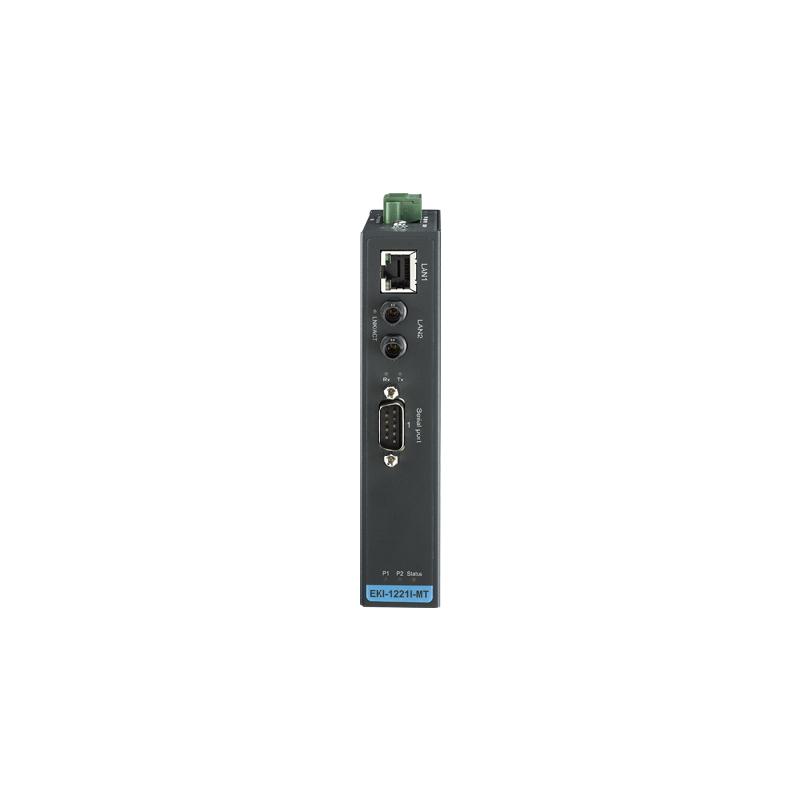

研華EKI-1221I-MT 1-Port Modbus Gateway, Fiber, Wide Temperature

研華EKI-1221I-MT 1-Port Modbus Gateway, Fiber, Wide Temperature


  • 1 x 10/100 Mbps Ethernet ports and 1 x 100 Mbps Fiber port
  • Integrates Modbus TCP and Modbus RTU/ASCII networks
  • Supports up to 921.6 kbps and any baud rate setting
  • Supports up to 16 connections per serial port under Modbus client mode and 32 sessions under Modbus server mode
  • Software-selectable RS-232/422/485/485-4w communication
  • Mountable via DIN rail and wall mount
  • Built-in 15 kV ESD protection for all serial signals
  • Automatic RS-485 data flow control
  • The EKI-1200 series Modbus gateways are bi-directional gateways for integrating new/ existing Modbus/RTU & Modbus/ASCII serial devices to newer TCP/IP networked-based devices, featuring one Ethernet port with RJ45 connector and one fiber port with SC/ST connector to provide redundancy & reliability.
