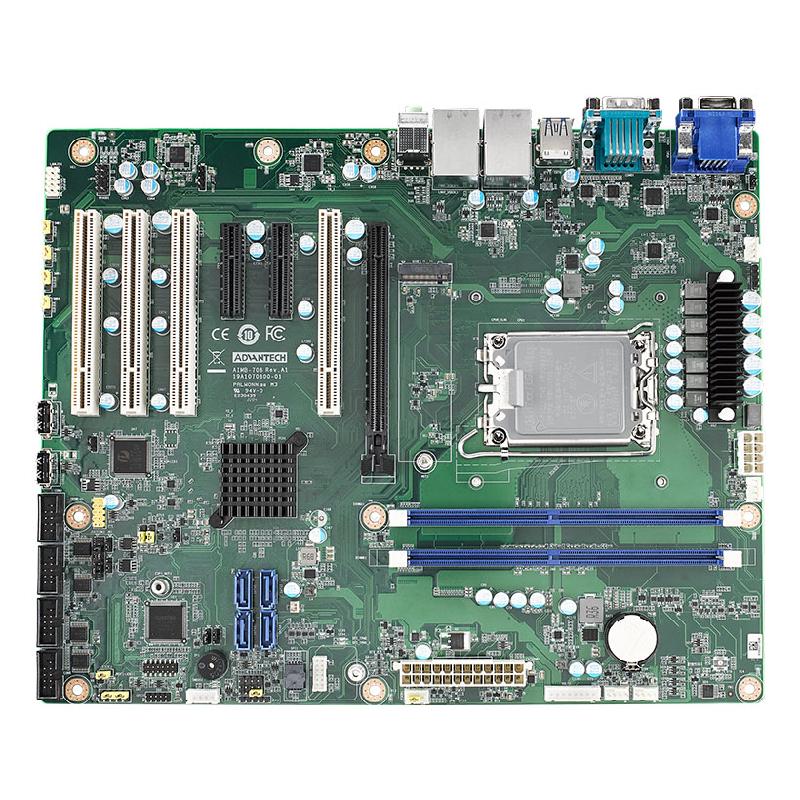

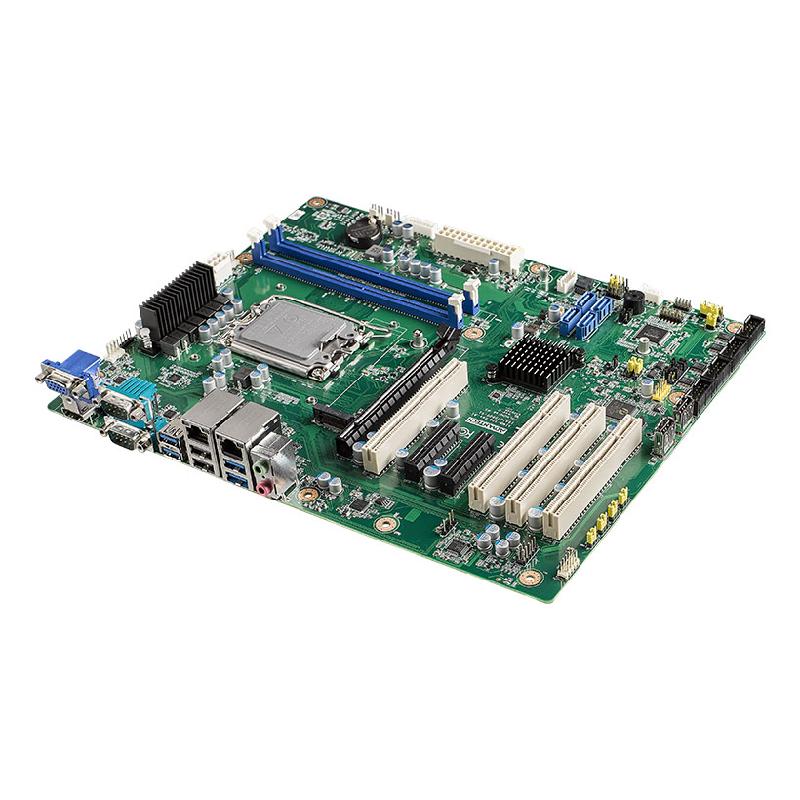

研華AIMB-708 LGA1700 12th/13th Generation Intel? Core? i9/i7/i5/i3 & Pentium?/ Celeron? ATX with HDMI/VGA, DDR4, USB 3.2, M.2, 6 COMs

研華AIMB-708 LGA1700 12th/13th Generation Intel? Core? i9/i7/i5/i3 & Pentium?/ Celeron? ATX with HDMI/VGA, DDR4, USB 3.2, M.2, 6 COMs


  • Intel? 12th/13th generation Core? i9/i7/i5/i3 & Pentium?/Celeron? processor with H610E chipset
  • Two DIMM sockets up to 64GB DDR4 3200
  • Dual display HDMI/VGA and dual GbE LAN
  • M.2, SATA 3.0, USB 3.2 Gen1
  • 5 RS-232 and 1 RS-232/422/485 serial ports
  • 1 PCIe x16 (Gen 4) and 2 PCIe x4 (x2 Gen 3 link), and 4 PCI expansion slots
  • Note 1: Legacy platform is not supported.
  • Note 2: dTPM 2.0 module is required to enable Intel vPro and TPM technologies.
  • Note 3: Intel? Platform Trust Technology (Intel? PTT) ready for Windows 11.
  • LGA1700 12th/13th Generation Intel? Core? i9/i7/i5/i3 & Pentium?/ Celeron? ATX with HDMI/VGA, DDR4, USB 3.2, M.2, 6 COMs
