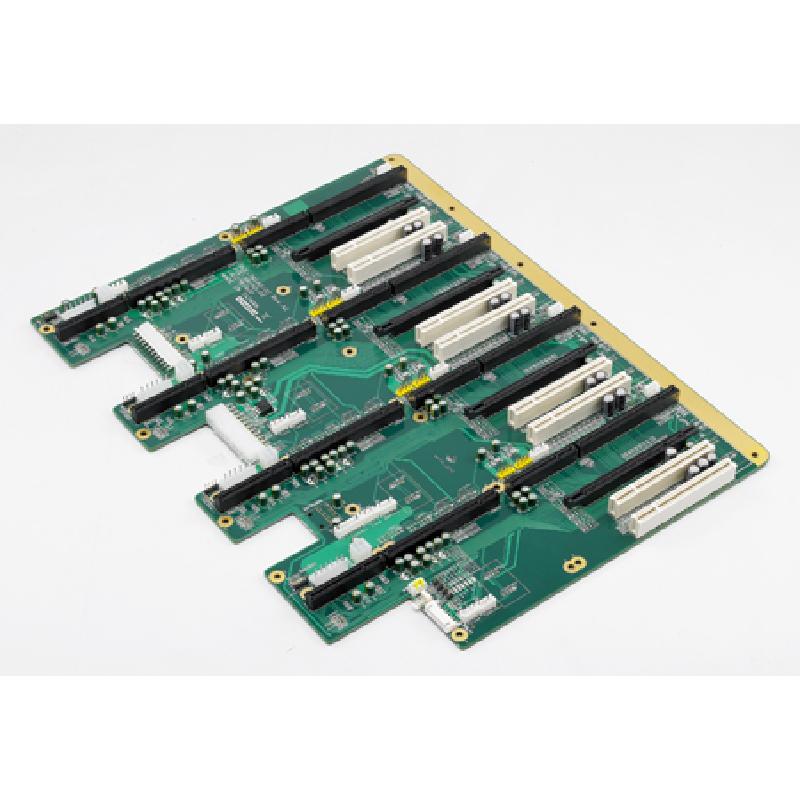

研華PCE-5B16Q 16-slot BP for 20-slot chassis

研華PCE-5B16Q 16-slot BP for 20-slot chassis


  • 16-slot BP for 20-slot chassis
  • Segments: 4
  • Each segment:
  • -- One CPU card slot
  • -- PCIe slot: One x16
  • -- PCI-X slot: N/A
  • -- PCI slot: Two 32/33
  • -- Compatible with IPC chassis: IPC-623, ACP-5360, ACP-7360
  • Complying with System Host Board (SHB Express; also called PICMG 1.3) standards, these SHBs feature the latest PCI Express technology, offering scalable I/O bandwidth of more than 10 GB/s. They maintain compatibility with PCIe, PCI-X, PCI and ISA, and allow customers to leverage commercial I/O cards. Advantech's SHBs empower system designers to create a new generation of servers, workstations and industrial platforms.
