研華IMC-771-MM Managed Modular Media Converter,1000Mbps, Multimode 850nm, 550m, SC (also known as iMcV 850-15511)

研華IMC-771-MM Managed Modular Media Converter,1000Mbps, Multimode 850nm, 550m, SC (also known as iMcV 850-15511)

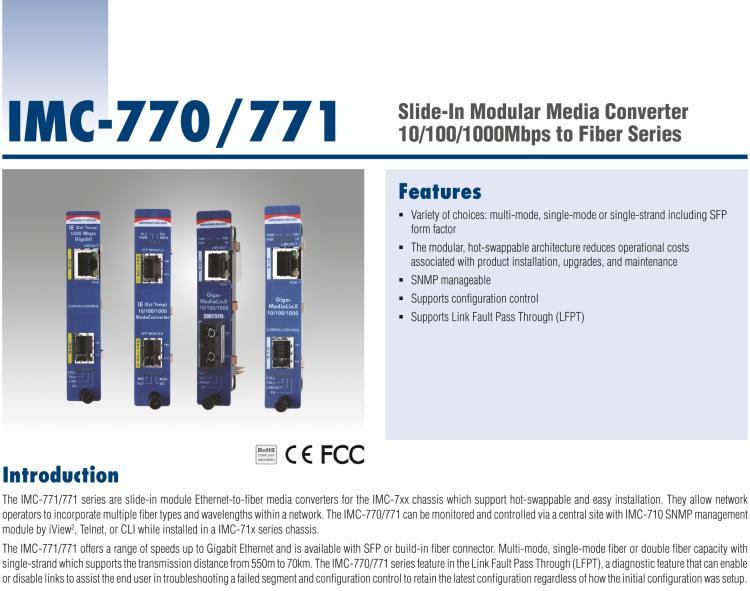

  • Variety of choices: multi-mode, single-mode or single-strand including SFP form factor
  • The modular, hot-swappable architecture reduces operational costs associated with product installation, upgrades, and maintenance
  • SNMP manageable
  • Supports configuration control
  • Supports Link Fault Pass Through (LFPT)
  • The IMC-771/771 series are slide-in module Ethernet-to-fiber media converter for IMC-7xx chassis, which supports hot-swappable and easy installation, It allows network operators to incorporate multiple fiber types and wavelengths within a network. The IMC-770/771 can be monitored and controlled via central site with IMC-710 SNMP management module by iView2, Telnet or CLI while installed in IMC-71x series chassis. Offering a range of speed up to Gigabit Ethernet and available with SFP or build-in fiber connector: multi-mode, single-mode fiber or double fiber capacity with single-strand which supports the transmission distance from 550m to 70km. The IMC-770/771 series feature in the Link Fault Pass Through (LFPT) functionality, a diagnostic feature that can enable or disable links to assist the end user in troubleshooting a failed segment and configuration control to retain the latest configuration regardless of how the initial configuration was setup. The IMC-770I-2SFP converter is protocol-independent with dial SFP ports which can provide a single conversion between different wavelengths or single-mode and multi-mode fiber, single-mode to single-mode fiber or multi-mode to single-strand fiber. Its SFP port must use an SFP of the same speed while allowing different fiber types. Additionally, the IMC-770I-2SFP and IMC-771I-SFP are industrial equipment devices. The unit operates in environments that demand extended operating temperatures.
