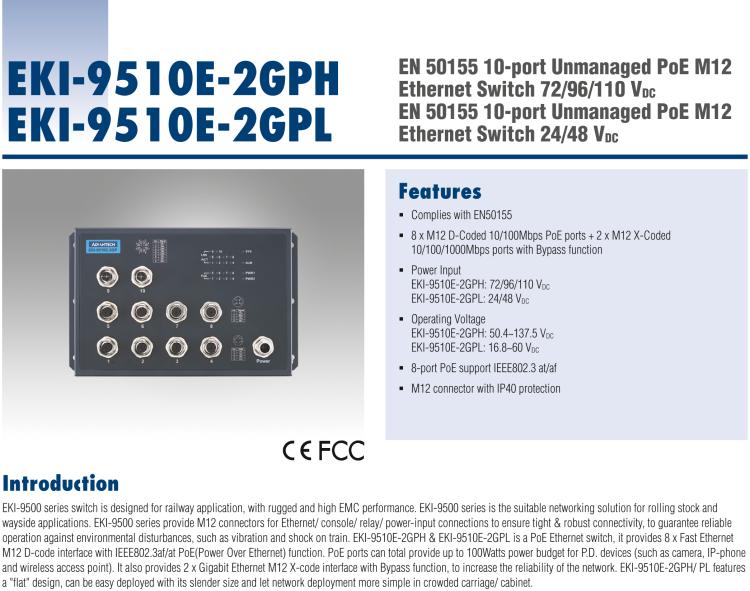

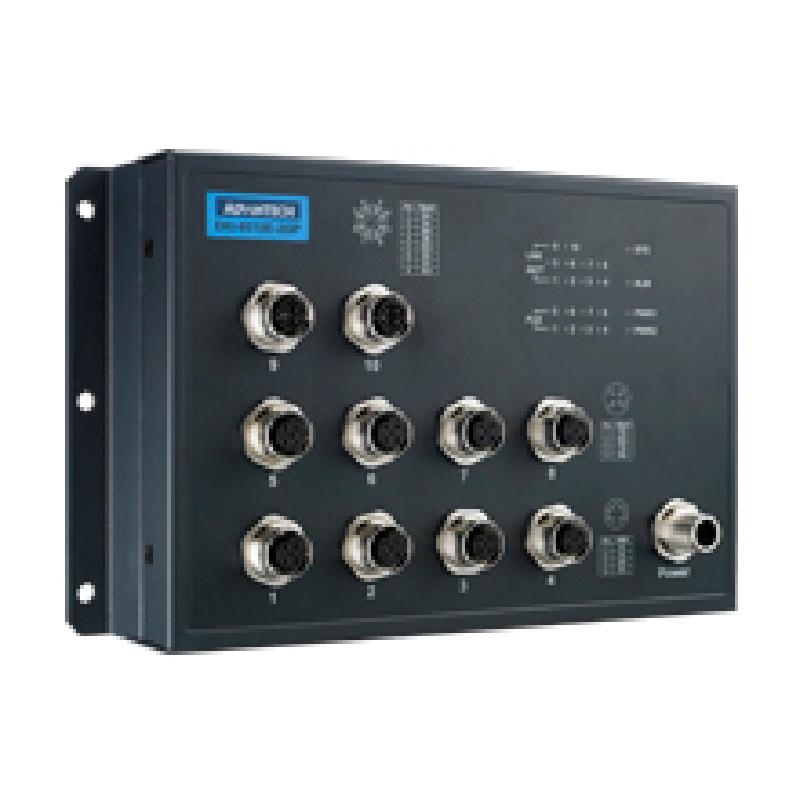

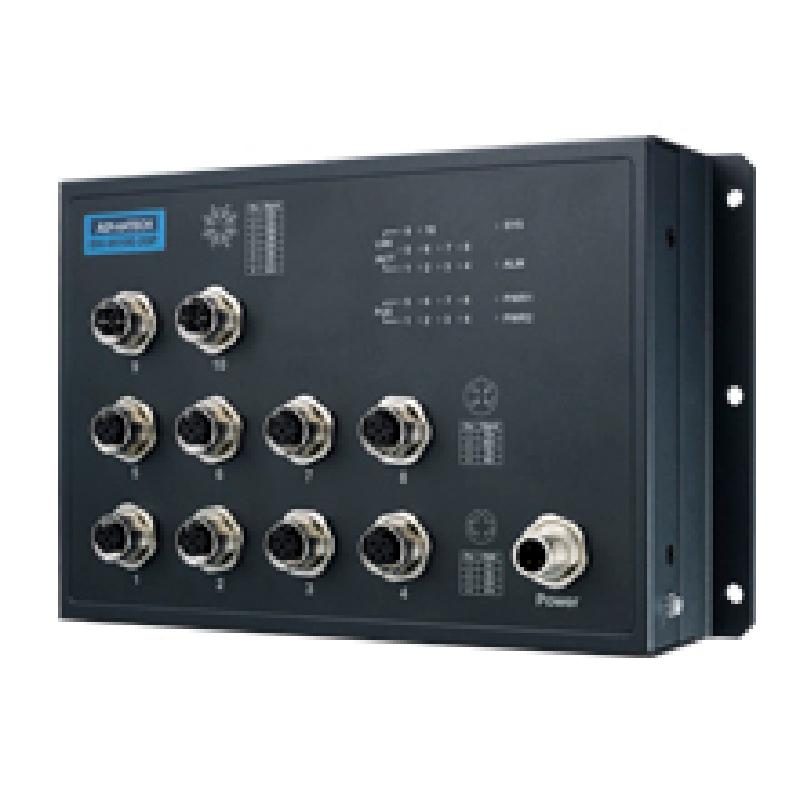

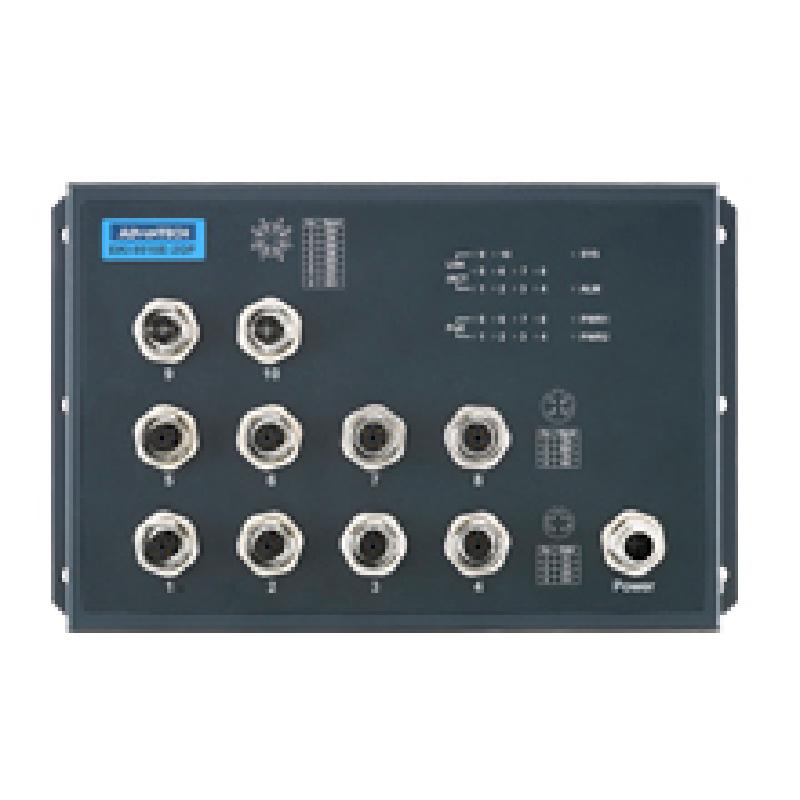

研華EKI-9510E-2GPH EN50155 Unmanaged PoE Ethernet Switch with 8FE+2GE bypass, 72-110 VDC

研華EKI-9510E-2GPH EN50155 Unmanaged PoE Ethernet Switch with 8FE+2GE bypass, 72-110 VDC

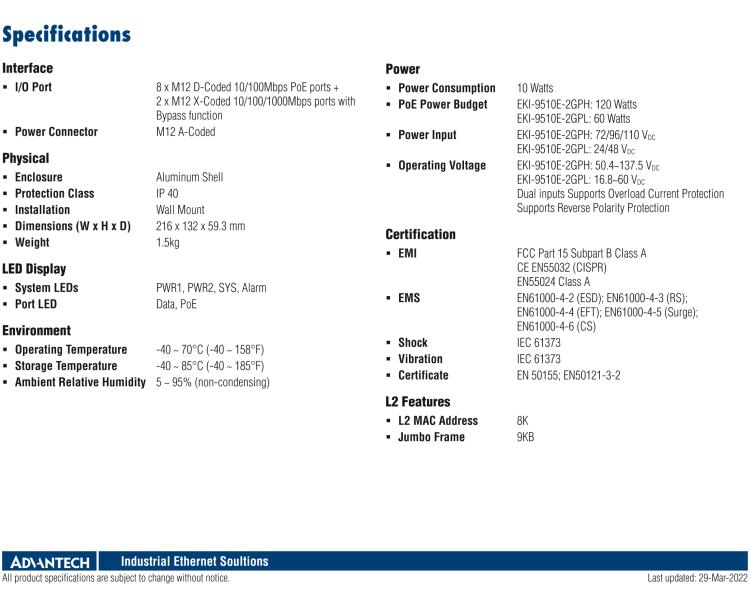

  • 8 x M12 D-Coded 10/100Mbps PoE ports + 2 x M12 X-Coded 10/100/1000Mbps ports with Bypass function
  • Complies with EN50155 & EN50121-3-2
  • Operating Temperature: -40~70℃
  • Operating Voltage: 50.4~137.5 VDC
  • 8-port PoE support IEEE802.3 at/af
  • M12 connector with rugged housing
  • The EKI-9500 series switch is designed for railway application with rugged and high EMC performance, being suitable for networking solution for rolling stock and wayside applications. The EKI-9500 series provides M12 connectors for Ethernet/ console/ relay/ power-input connections to ensure tight & robust connectivity, and thus to guarantee reliable operation against environmental disturbances such as vibration and shock on train. The EKI-9510E-2GPH & EKI-9510E-2GPL are PoE Ethernet switches that provide 8 x Fast Ethernet M12 D-coded ports with IEEE802.3af/at PoE(Power Over Ethernet) function. The PoE ports can provide up to 100Watts power budget for P.D. devices (such as camera, IP-phone and wireless access point). Each of them also provides 2 x Gigabit Ethernet M12 X-coded ports with Bypass function to increase the reliability of the network. EKI-9510E-2GPH/ PL features a "flat" design which can be easy deployed with its slender size and make network deployment easier in crowded carriage/ cabinet.
