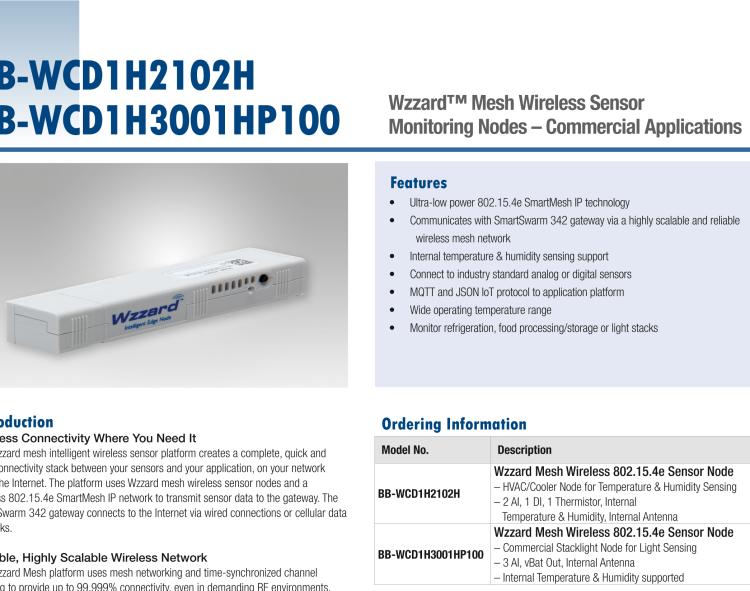

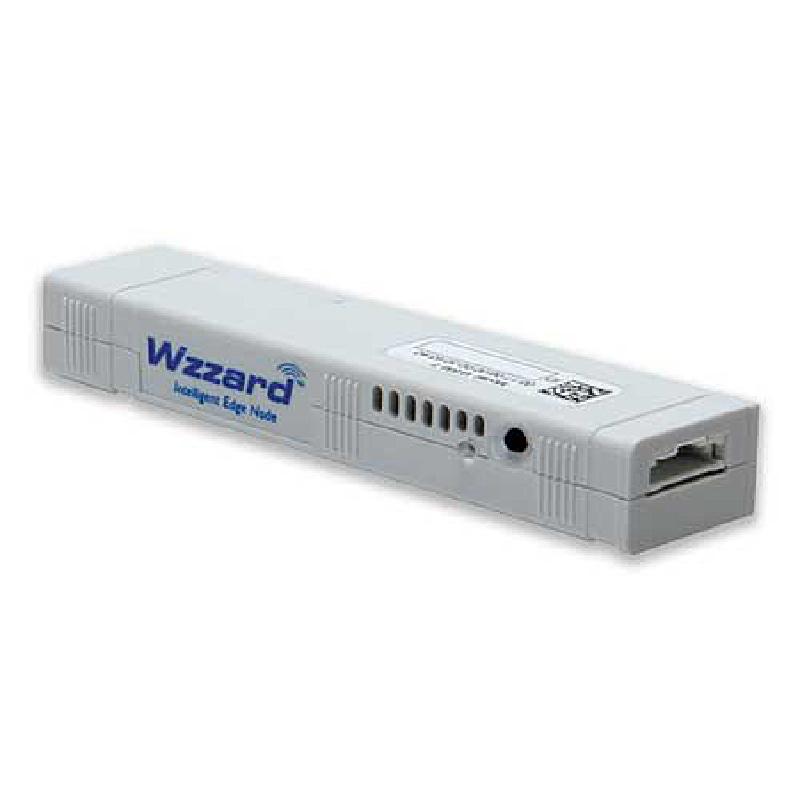

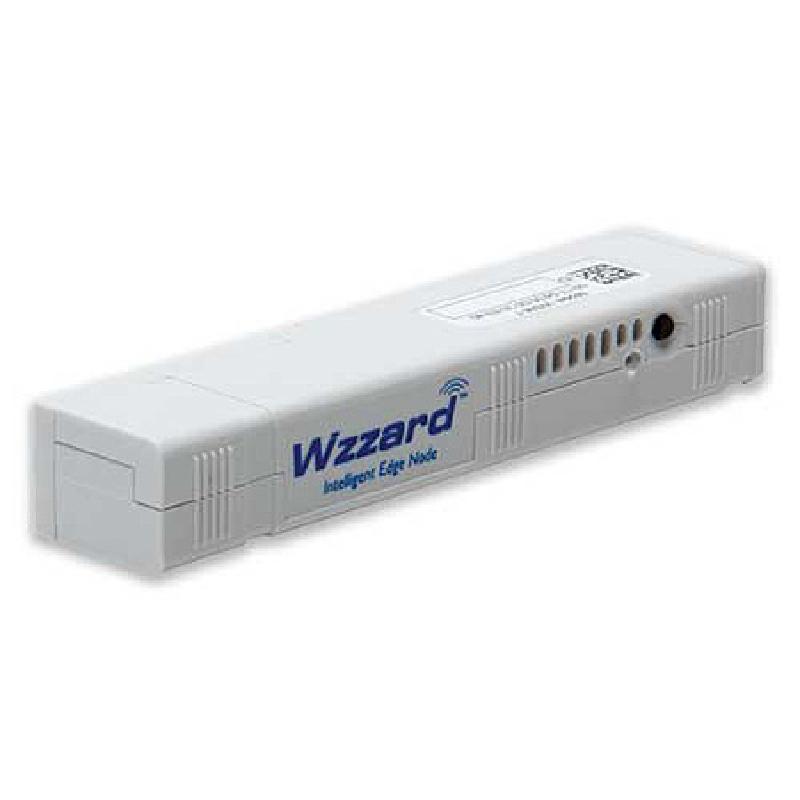

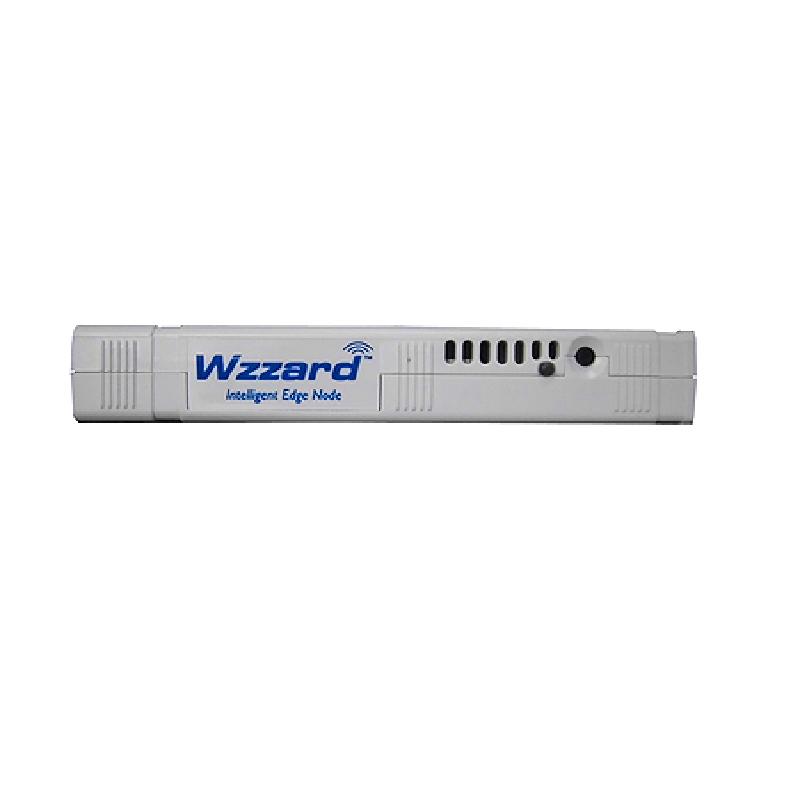

研華BB-WCD1H2102H Wzzard Mesh Indoor Node - Temp, Humidity, 2 AI, 1 DI, 1 Thermistor

研華BB-WCD1H2102H Wzzard Mesh Indoor Node - Temp, Humidity, 2 AI, 1 DI, 1 Thermistor

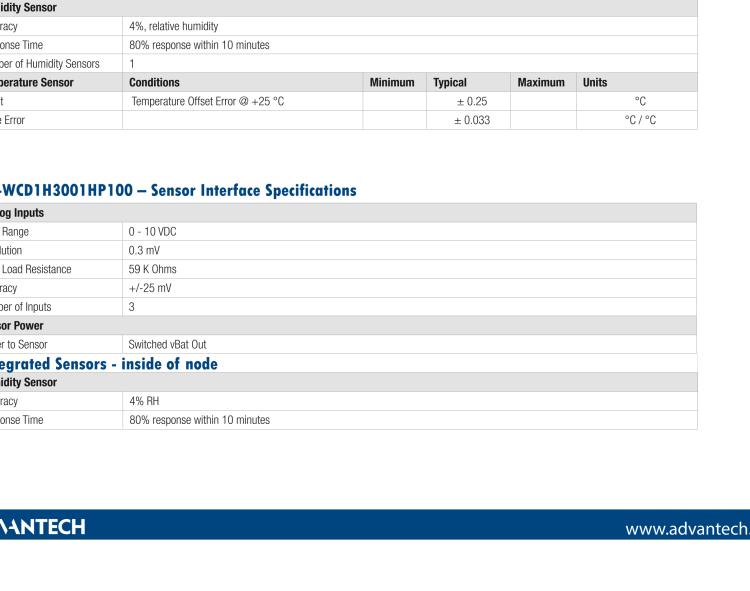

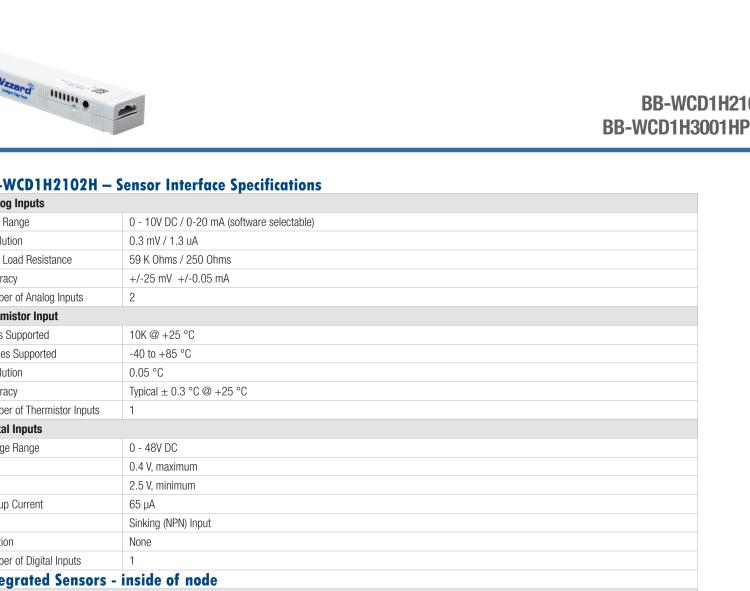

  • Sensor Inputs: 2 AI, 1 DI, 1 internal temperature, 1 internal humidity, 1 thermistor (refrigeration, HVAC, similar applications)
  • Environmental monitoring - including commercial refrigeration, food processing and storage applications and more

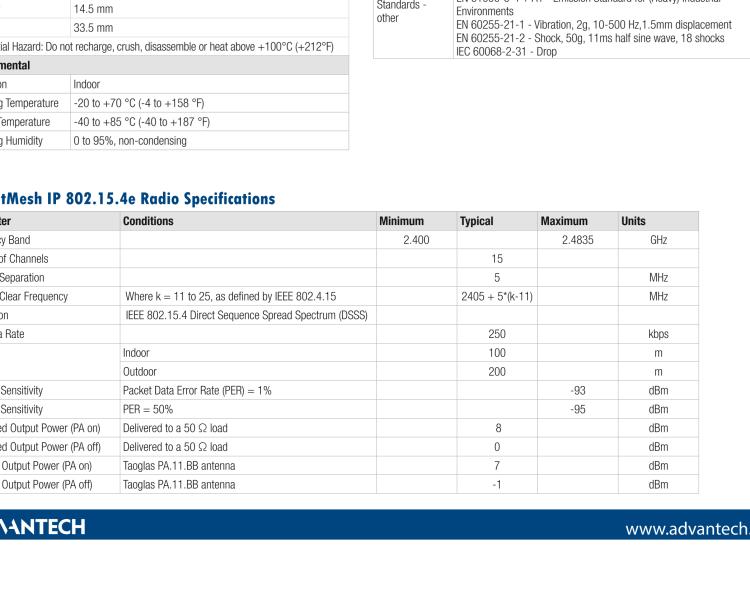

  • Ultra-low power 802.15.4e SmartMesh IP technology
  • Communicates with SmartSwarm 342 gateway via highly scalable and reliable wireless mesh networks
  • Wide operating temperature range
  • MQTT and JSON IoT protocol to application platform
  • The Wzzard mesh intelligent wireless sensor platform creates a complete, quick and easy connectivity stack between your sensors and your application, on your network or on the Internet. The platform uses Wzzard mesh wireless sensor nodes, a wireless 802.15.4e SmartMesh IP network to transmit sensor data to the gateway. The SmartSwarm 342 Gateway can connect to the Internet via wired connections or the cellular data networks and communicate. Secure, Reliable and Highly Scalable Wireless Networking - The Wzzard Mesh platform uses mesh networking and time-synchronized channel hopping to provide up to 99.999% connectivity, even in the most demanding RF environments. New nodes may be added at any time, and the SmartMesh IP network will dynamically self-configure as new nodes are added or removed. This is a function of the mesh network itself, and does not need to be controlled by the network gateway. Easy Configuration and Installation - Configuration of the Wzzard mesh sensor platform is easy via the B B SmartWorx Hub cloud management portal.
