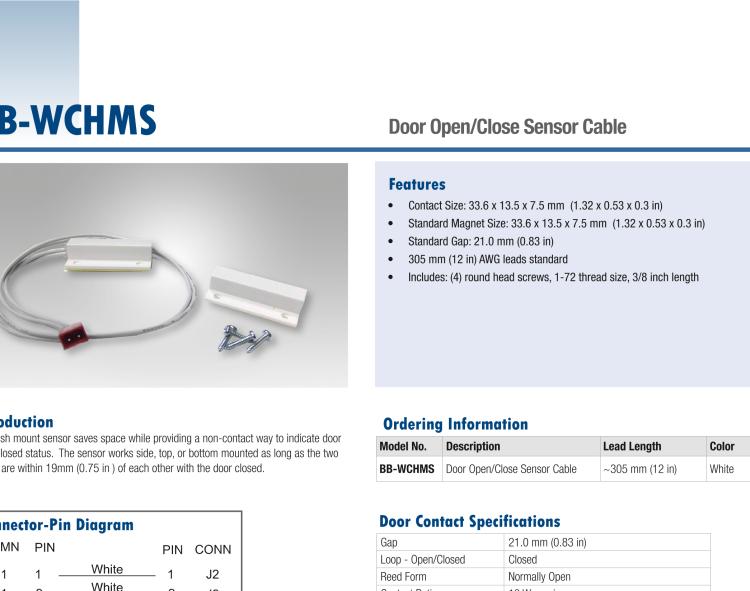

研華BB-WCHMS Door Open/Close Magnet/Reed Switch Sensor

研華BB-WCHMS Door Open/Close Magnet/Reed Switch Sensor


  • Contact Size: 33.6 x 13.5 x 7.5 mm (1.32 x 0.53 x 0.3 in)
  • Standard Magnet Size: 33.6 x 13.5 x 7.5 mm (1.32 x 0.53 x 0.3 in)
  • Standard Gap: 21.0 mm (0.83 in)
  • 305 mm (12 in) AWG leads standard
  • Includes: (4) round head screws, 1-72 thread size, 3/8"

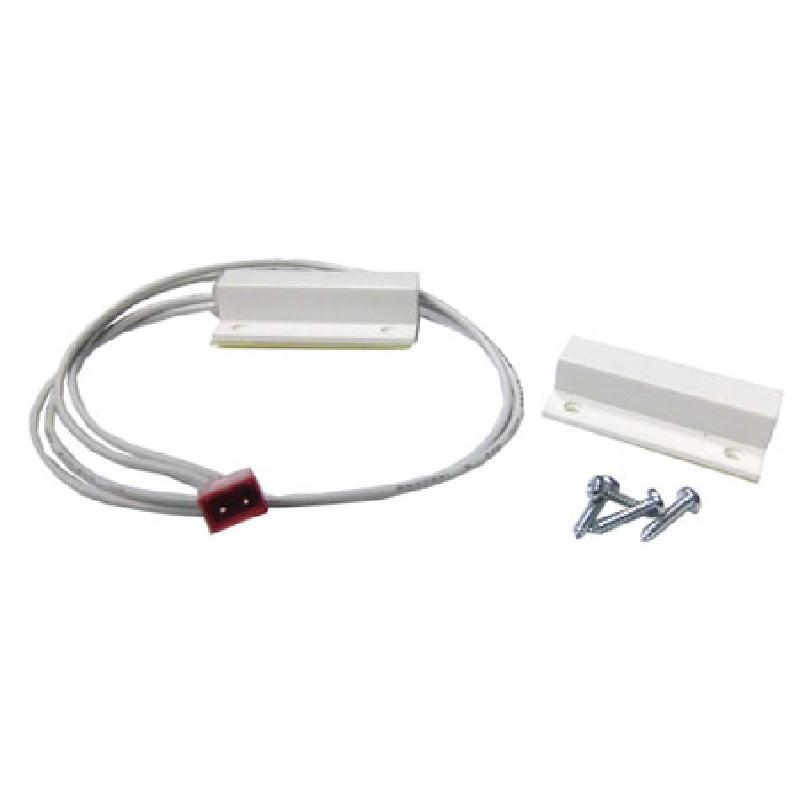

  • The flush mount sensor saves space while providing a non-contact way to indicate door open/closed status. The sensor works side, top, or bottom mounted as long as the two pieces are within 19mm (0.75in) of each other with the door closed.
