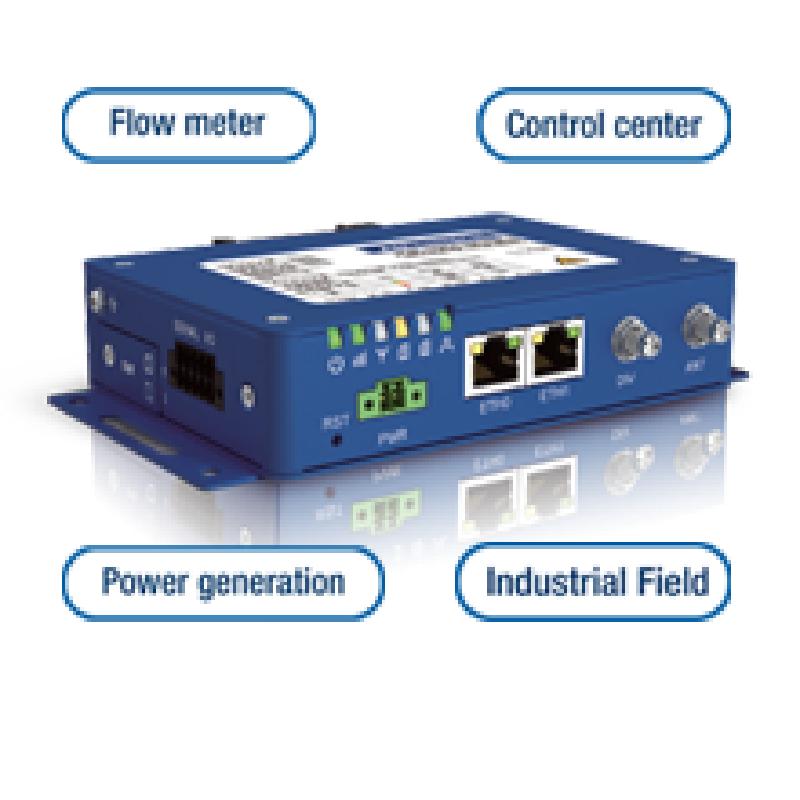

研華ESRP-PCS-ICR3231 Industrial Cellular Router Supports IEC 60870-5-101/104 Communication Protocol

研華ESRP-PCS-ICR3231 Industrial Cellular Router Supports IEC 60870-5-101/104 Communication Protocol

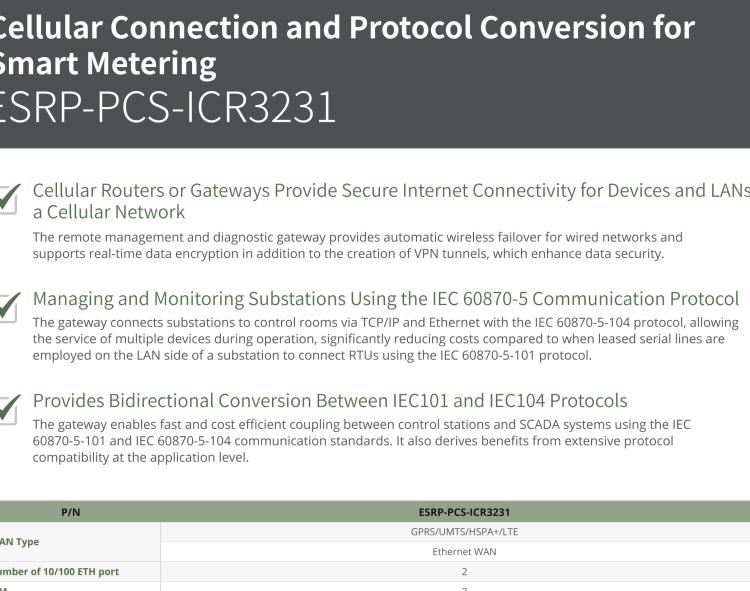

  • Provides Bidirectional Conversion Between IEC101 and IEC104 Protocols
  • Managing and Monitoring Substations using the IEC 60870-5 Communication Protocol
  • Cellular Routers or Gateways Provide Secure Internet Connectivity for Devices and LANs via a Cellular Network
  •  1. Cellular Routers or Gateways Provide Secure Internet Connectivity for Devices and LANs via a Cellular Network.
    _The Remote Management and Diagnostic Gateway provides automatic wireless failover for wired networks and supports real-time data encryption in addition to the creation of VPN tunnels, which enhance data security.

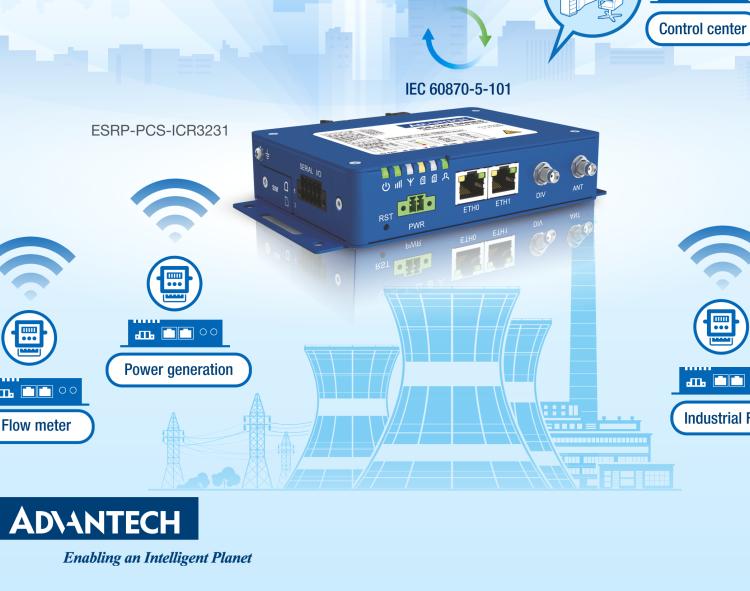

    2.Managing and Monitoring Substations using the IEC 60870-5 Communication Protocol.
    _The gateway connects substations to control rooms via TCP/IP and Ethernet with the IEC 60870-5-104 protocol, allowing the service of multiple devices during operation, significantly reducing costs compared to when leased serial lines are employed on the LAN side of a substation to connect RTUs using the IEC 60870-5-101 protocol.

    3.Provides Bidirectional Conversion Between IEC101 and IEC104 Protocols.
    _The gateway enables fast and cost efficient coupling between control stations and SCADA systems using the IEC 60870-5-101 and IEC 60870-5-104 communication standards. It also derives benefits from extensive protocol compatibility at the application level.
